About This

• RELEASE WATER AWAY FROM PROPERTY: Discharge stormwater runoff captured and conveyed with catch basins, channel drains, drain pipes, and other drainage system components at a point of release in a water-safe area

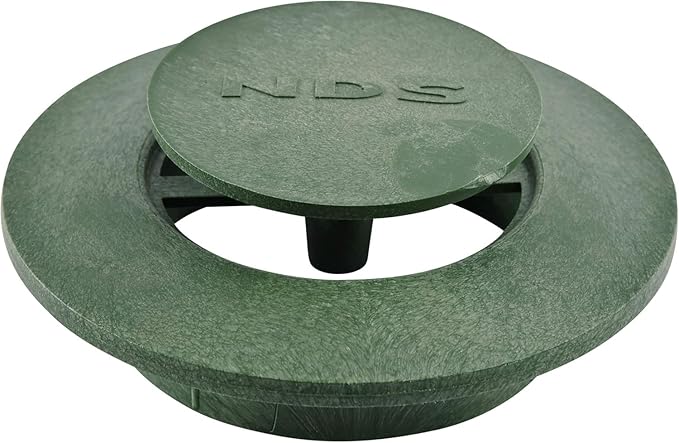

• HOW IT WORKS: When water flows downstream and pressure builds, the cap pops up as high as 1 in., releases water, and closes once the flow diminishes; cap stays closed when not in use to prevent debris and clogging

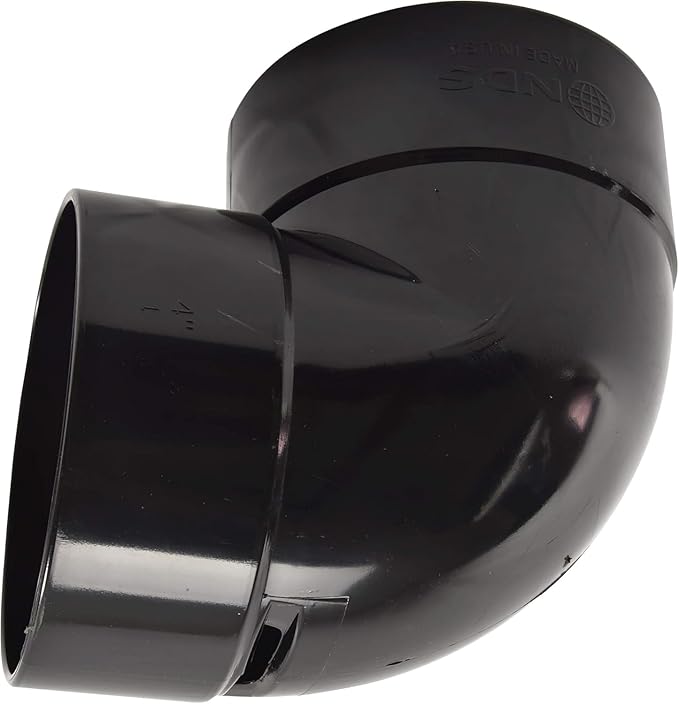

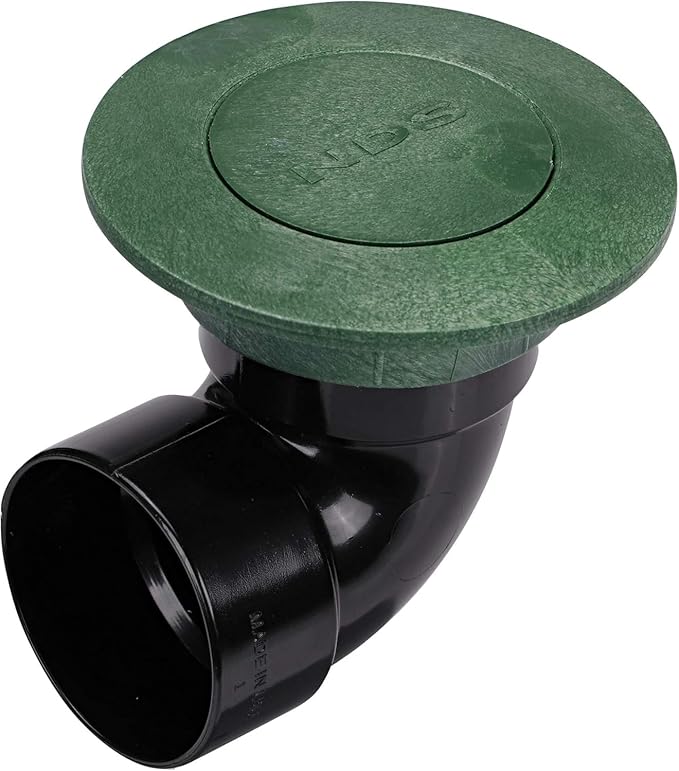

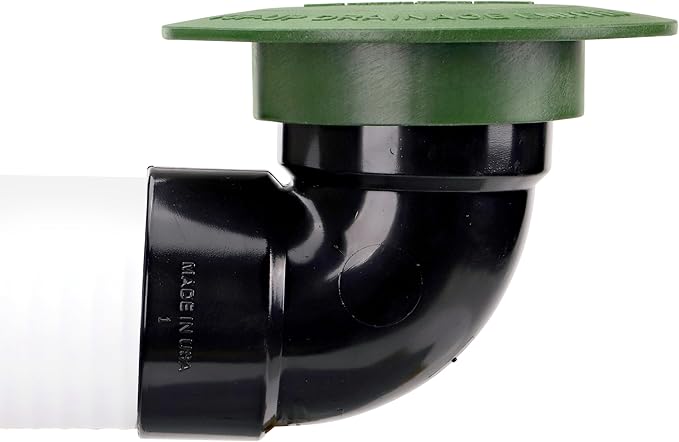

• HOW TO INSTALL: Elbow connects to 3 in. sewer and drain pipe and 3 in. triple-wall pipe; Ensure the cover flange is flush or slightly below the top of the soil to prevent clipping with lawnmower

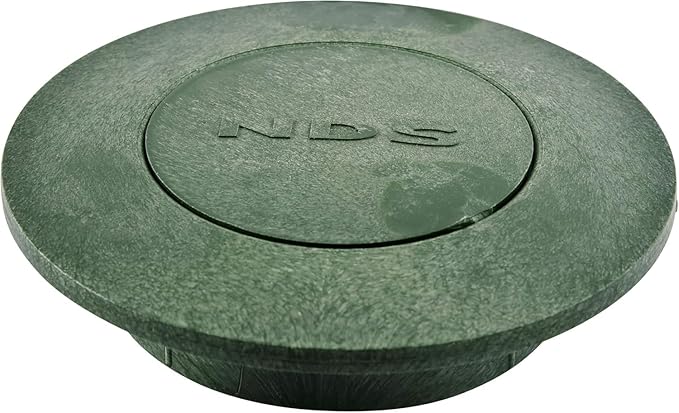

• KEY FEATURES: Flange design prevents grass from growing over the cover; Small weep hole in elbow drains out any water in the pipe to prevent stagnation or freezing in cold weather; Flat profile reduces tripping hazard
• SPECS: Releases collected water up to 56 GPM; Supports pedestrian traffic, when properly installed; Cap/cover made of high-density polyethylene (HDPE) treated with UV inhibitors to prevent fading and cracking

Overview

• Size : 3 Inch
• Material : High Density Polyethylene (HDPE), Polyvinyl Chloride (PVC)
• Brand : NDS
• Color : Green
• Item dimensions L x W x H : 32.75 x 23.25 x 15 inches
• Connector Type : Elbow
• Exterior Finish : HDPE (cap and cover), PVC (elbow)
• Item Weight : 8 ounces
• Number of Pieces : 1
• Global Trade Identification Number : 00052063322001
